CNC Machining

Precision Machining of Complex Components, Crafted with Accuracy and Innovation

Precision CNC Machining for Complex, High-Performance Components

CNC Machining Excellence: Engineering Intricate, High-Performance Components

Coining leverages state-of-the-art 5-axis vertical CNC machines to produce custom precision components with dimensions up to 31.5” in length, 17.7” in width, and 21.3” in height. Our machining capabilities go beyond standard milling and drilling to include advanced operations such as knurling, counterboring, and threading—enabling us to craft intricate geometries and multifaceted structures with tolerances as tight as ±0.0005°. We support both high- and low-volume orders with rapid lead times and competitive pricing, producing housings and packages for industries ranging from hermetic sealing and telecommunications to semiconductors, aerospace, military, and defense. Additionally, we add complex features to custom parts after metal stamping or Swiss screw machining. All of these advanced capabilities are delivered under the PrecisionX Group platform, expanding our reach into custom, high-performance CNC solutions.

Precision in Motion: Mastering CNC Machining for Complex, High-Performance Components

Advanced CNC Machining: Precision and Power for Complex Components

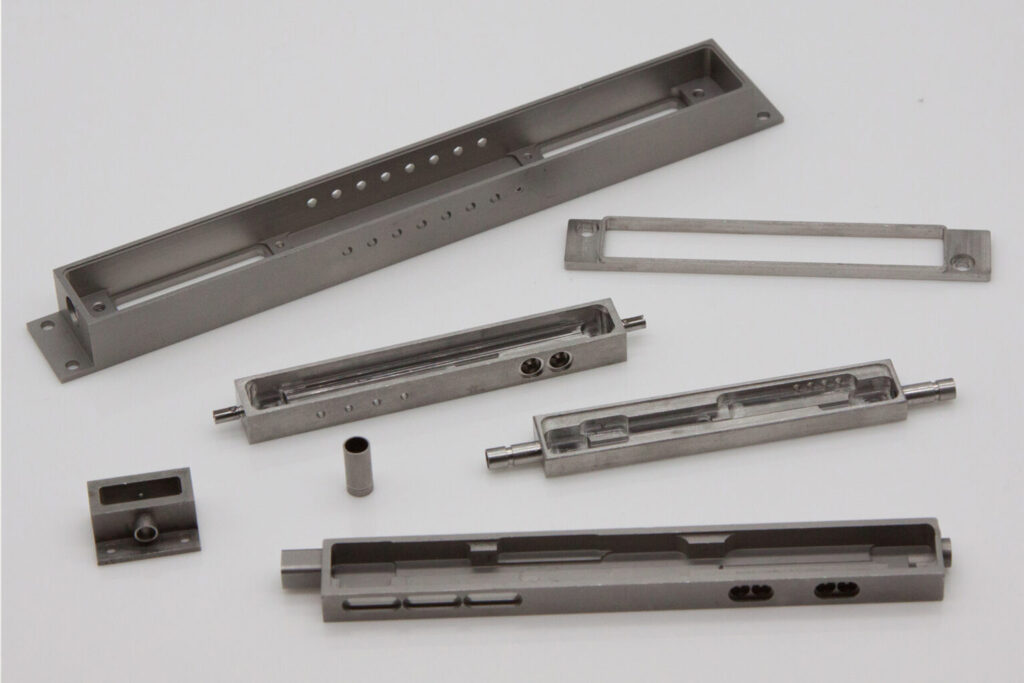

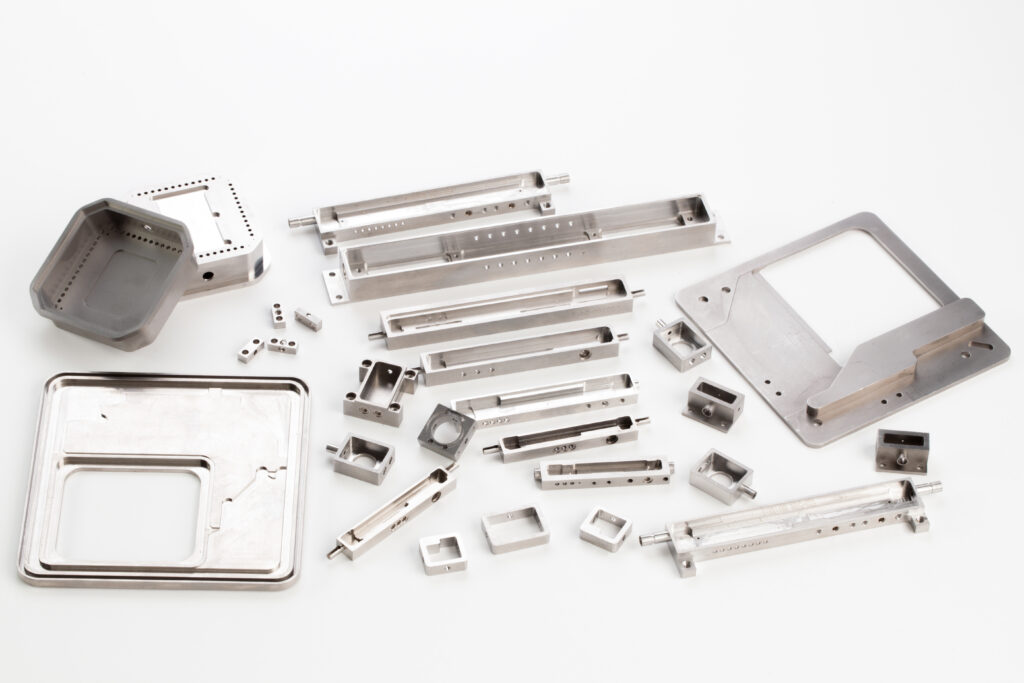

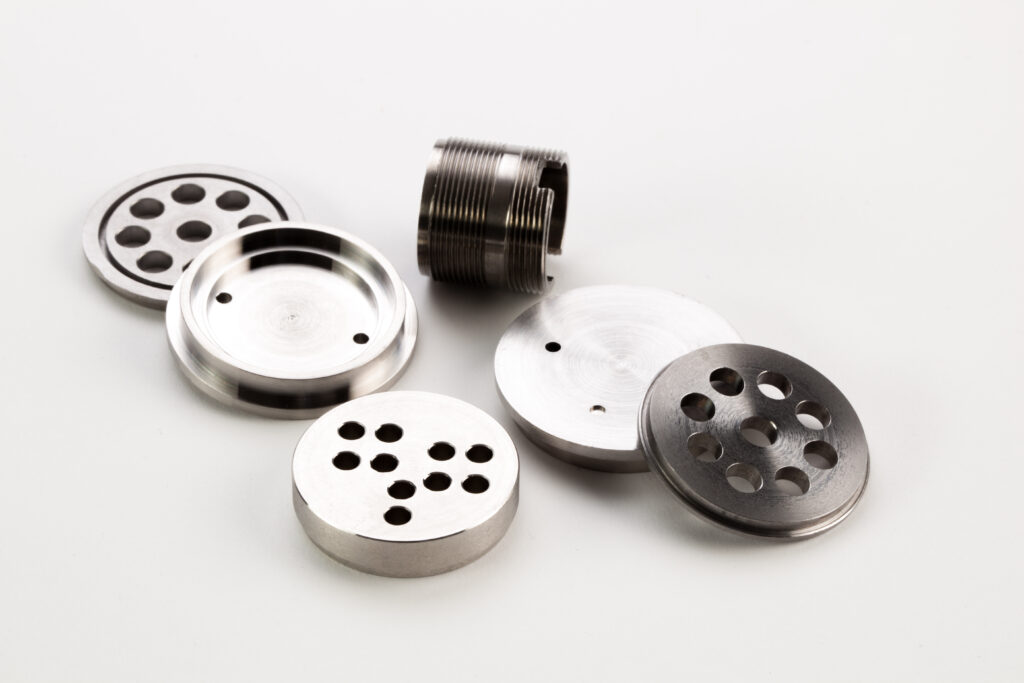

Intricate Precision Machined Components: Engineered for Superior Detail and Performance

Unique size and tolerance capabilities.

Within the PrecisionX Group, our precision CNC machining capabilities are custom-tailored to produce components with unique dimensions and extremely tight tolerances for the most demanding applications. Utilizing state-of-the-art machinery and a team of skilled technicians, we deliver intricate details and exact dimensions that consistently meet rigorous specifications. Our advanced processes empower us to manage complex geometries and customized sizes, ensuring every component is manufactured with unparalleled accuracy. Driven by a steadfast commitment to precision and quality, we deliver reliable, high-performance parts for critical applications across a range of industries.

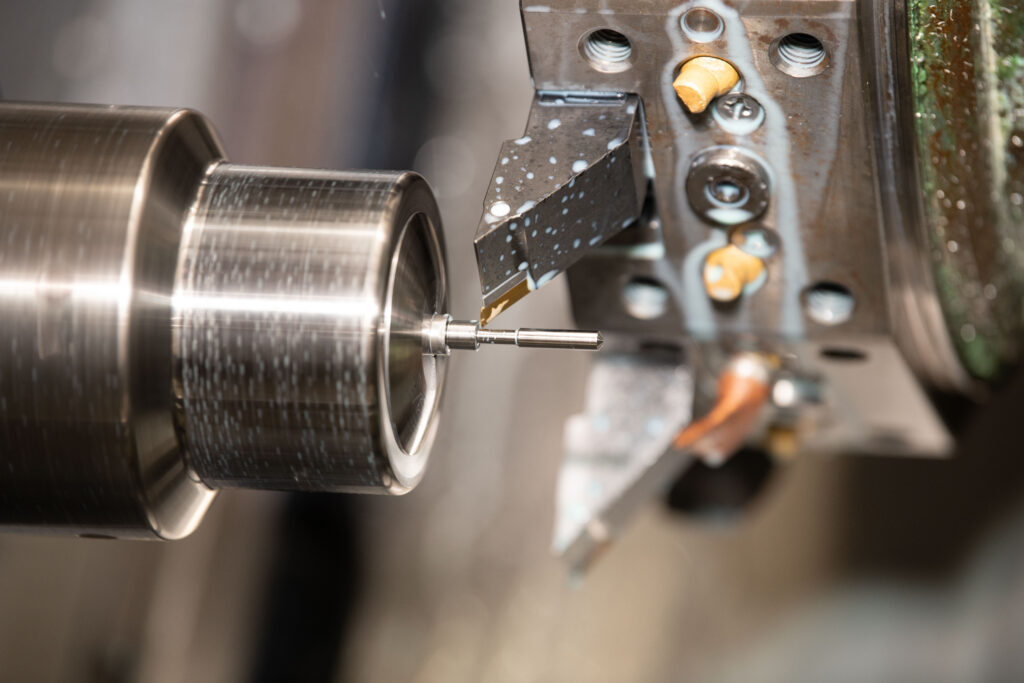

Turning - CNC

Work Envelope: 14.2” Diameter
X 23.6” Length
Tolerances as tight as +/- .0002”

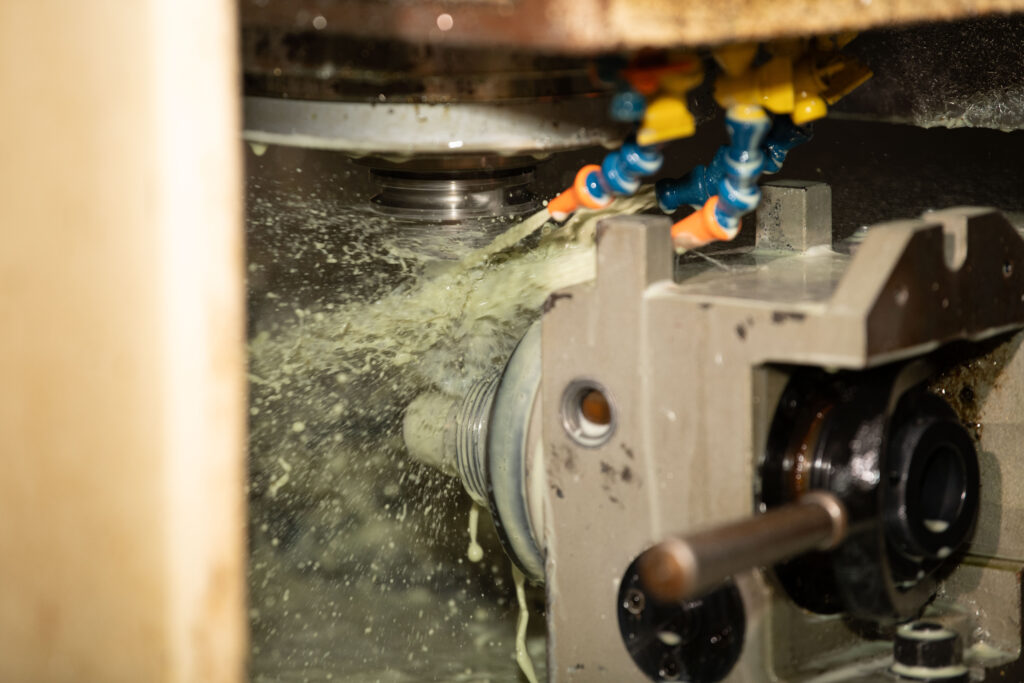

5 Axis Milling

Work Envelope: 18” x 14”x14”
Tolerances as tight as +/- .0001”
Surface Finish: Less than 16uin

3 Axis Milling

Work Envelope: 64” X 32” X 30”
Tolerances as tight as +/- .0001”

CNC MILLING CAPABILITIES, include…

3-Axis Vertical Machining with Bolt on Dual-Axis Trunnion– Permits fast cycle time by allowing access to the part from 5 sides. Accuracy achieved by minimizing setups. Simultaneous 5-axis machining capable.
5-Axis High-Precision Vertical Machining– Specializes in machining hardened material to an extremely fine surface finish by eliminating thermal distortion on all levels. Equipped with 80 position Robotic Workpiece changer that utilizes Zero-Point Fixturing for highly repeatable lights out machining.
3-Axis Vertical Machining with Bolt on Rotary– It’s versatility and easy adaptability lends itself to short run, fast-turnaround to mass productions. Simultaneous 4-axis machining capable.

	3-Axis with Trunnion	5-Axis High-Precision	3-Axis with Rotary
3 Axis Work Envelope (in)	64″ x 32″ x 30″ (X, Y, Z)	N/A	19.68″ x 15.74″ x 12.9″ (X, Y, Z)
Max Part Weight (lb.)	2,000	N/A	660
5 Axis Work Envelope (in.)	19″ x 18″ (Dia, Length)	7.87″ x 6.2″ (Dia, Length)	11″ x 14″ (Dia, Length)
Max Part Weight (lb.)	200	33	220
Spindle RPM (min^-1)	12,000	40,000	10,000
Spindle Power (HP)	30 (Cont.)	10 (Cont.)	15, 5 (Peak, Cont.)
Spindle Torque (ft-lb)	22.4 (Cont.)	1.3 (Cont.)	39 (Peak)
Surface Finish Min (Ra)	12	<1	2
Accuracy (in.)	0.0001	0.00002	0.0002
Repeatability (in.)	0.0001	0.00002	0.000078

CNC TURNING CAPABILITIES

Work Envelope (in.)	14.17″ x 23.6″ (Dia, Length)
Main Spindle RPM (min^-1)	3,500
Main Spindle Power (HP)	30, 25 (Peak, Cont.)
Main Spindle Torque (ft-lb)	369, 310 (Peak, Cont.)
Sub Spindle RPM (min^-1)	5,000
Sub Spindle Power (HP)	20, 15 (Peak, Cont.)
Sub Spindle Torque (ft-lb)	92, 51 (Peak, Cont.)
Live Tool Spindle RPM (min-1)	6,000
Live Tool Spindle Power (HP)	10, 5 (Peak, Cont.)
Live Tool Spindle Torque (ft-lb)	30, 13 (Peak, Cont.)
